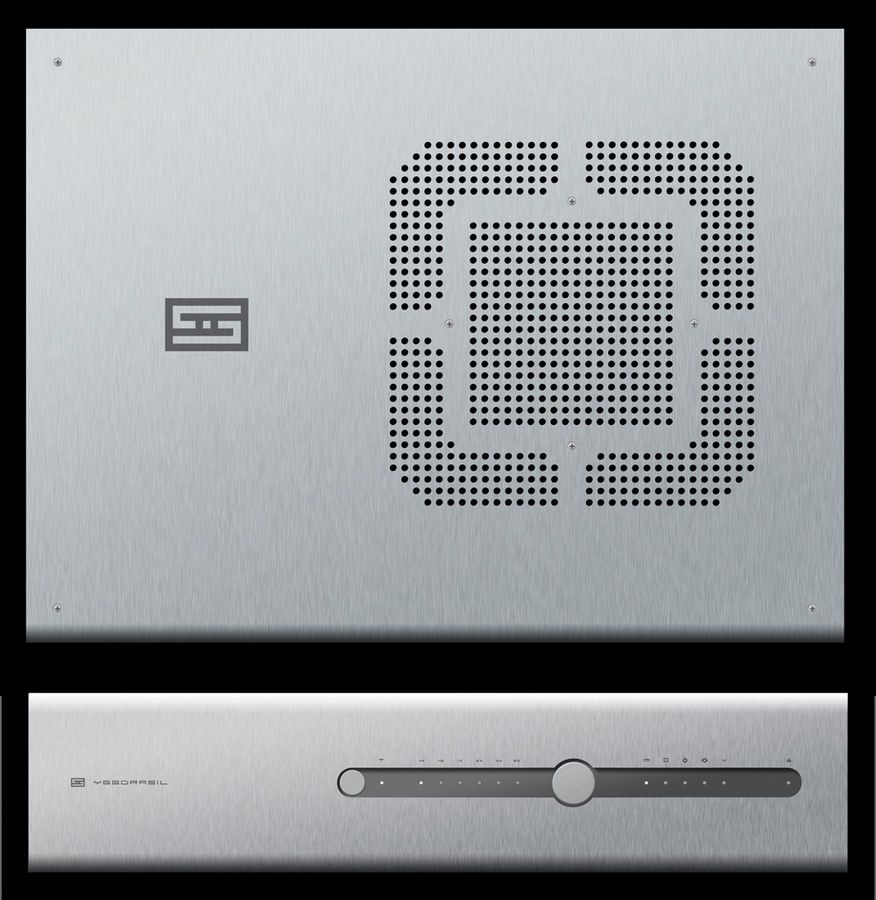

YGGDRASIL:

"Yggdrasil is the ultimate expression of Schiit's bitperfect approach, and the antithesis of noise-shaping DACs and technologies such as DSD. With proprietary technology from input stage to clock regeneration to digital filter to D/A conversion and analog output stage, Yggdrasil (the world tree in Norse legend, and the source of all things) resets the bar for DACs.

Inputs: USB, Toslink, Coax, BNC, AES/EBU
Outputs: balanced XLR and single-ended RCA
Clock Regeneration: proprietary Adapticlock topology with analysis of quality of incoming datastream, as well as VCO and VCXO reclocking
Phase Inversion: selectable via front panel button
Digital Filter: proprietary Schiit closed-form bitperfect digital filter based on <REDACTED>
D/A Conversion: proprietary fully differential configuration based on <REDACTED>
Analog Stage: proprietary Schiit Pivot-Point differential current-feedback topology, fully discrete, with ultra-low-noise JFET and bipolar devices
Power Supply: 4 choke-input, shunt-regulated supplies feeding 20+ stages of discrete and integrated local regulation
Size & Weight: 16 x 12 x 3.875」, 30 lbs
Estimated Price & Availability: $1700-1900, early 2014"
