SPECIFICATIONS

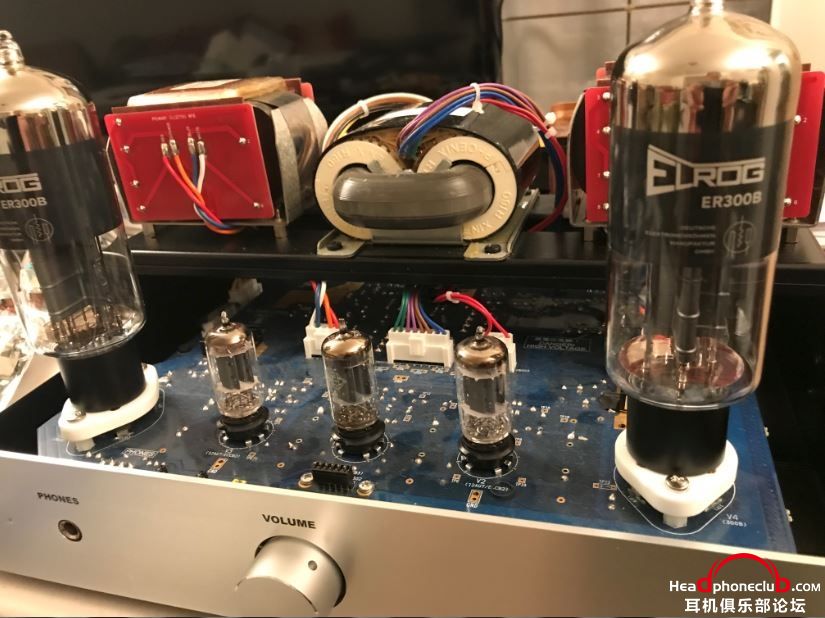

Stock tube 300Bx2, 12AX7x1, 12AU7x2
* Tubes are not included.
Rated output 9.2W+9.2W (THD 10%)
Rated input 320mV
Residual noise 36μV (IHF-A)
Frequency response 7Hz-40kHz (-3dB)
Inpur impedance 50kΩ
Output impedance 4-6.3Ω, 8-16Ω (Switch on the back side)
Input terminal LINE x 1
Output terminal
Speaker output terminal : Gold-plated screw type terminal (Banana plug usable)
Headphone output terminal : 6.3mm headphone jack
Power voltage AC100/200V 50/60Hz (3P inlet)
Power consumption 90W
Dimensions W385xH217xD325mm (excl. projections)
Weight Approx. 12.8kg (excl. power cable)
|
|
