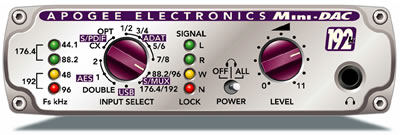

【 Mini-DAC 双通道192k D/A转换器 】

Pan

交易区新帖推荐

  .



Mini-DAC 双通道192k D/A转换器-获奖/评论
    用户：David Grissom – 吉他演奏家

    合作艺人：Dixie Chicks, Lee Ann Womack, Bob Dylan, Storyville, John Mellencamp
    "我目前正在使用Mini-Me和Mini-DAC 和其他数字设备。当我最初使用Mini-Me和 MOTU 828时钟同步,我一下子被它的声音给震惊了，比任何声音都要好。Mini-Me 和 Mini-DAC让我录制和缩混更加精确。当我的调音台离开这间工作室时，我相信它们的声音比其他系统更加完美。"


    Tom Chianti – 录音工程师

    最近制作项目: Deja Vu The Roc Project: featuring Tina Novak
    “它们真让我难以置信。
    如果在我的纽约大工作室中没有Mini-Me 和Mini-DAC，我不可能录制出这么清晰的声音。我将整个2 O1V的输出和整个混音通过Mini-Me 和 S/PDIF 输出到我地2408或者通过我的 Digi 001 到 Finalizer 96 ，然后通过Mini－ DAC输出到我的主控双轨上。






Inputs:

2 x AES-EBU on 9 pin D-Type (breakout cable to two female XLR-3 required) handling sample rates: 44.1k-192k single-wide and 88.2 k--192k double-wide.
S/PDIF optical on TOS-LINK 44.1/48k
S/PDIF coaxial on RCA 44/1-192k
ADAT 44/1-48k
ADAT/SMUX II for 88/2/96k
ADAT/SMUX IV for 176.4/192k
USB at 44.1/48k
Outputs:

2 x XLR (pin 2 -- hot) for pro-audio stereo
1/8" jack for consumer-level stereo (standard 1/8" to RCA cable required) also able to drive headphone's
1/4" jack headphone
USB
Specs:

Output level xlr's: 24dBu max (internally or externally adjustable) ultra low impedance, high current drive balanced outputs.
Output 1/8": +10dBV max (fixed or externally adjustable)
Headphone out: 300mW into 30 ohm
Sample rates: 44.1/48-88.2/96-176/192 . All +/- 10%
Max word length: 24bit
Frequency response: 10-20k +/- 0.2 dB (at 44.1kHz)
THD+N: -107 dB
Dynamic range: 119 dB weighted
Inter channel crosstalk: -125 dB
Power consumption: 5W max.
Power source: 6-14 V DC. International (90-240V) power adapter included

reago

睇落好似没咩用，但是在专业音频制作上就掂

wujiapeng

DA10... [s:27]
